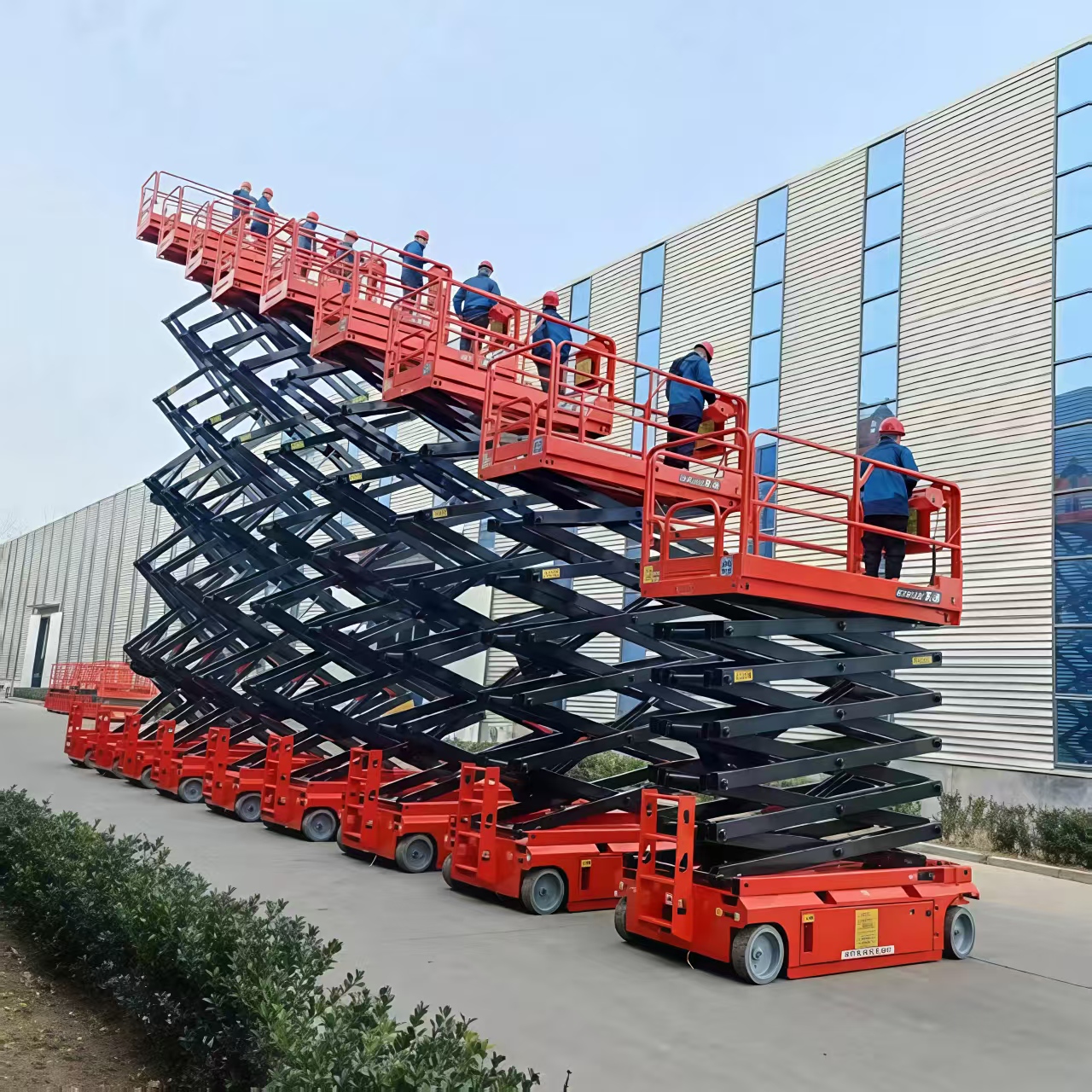

Self-Propelled Scissor Lifting Platform （16-20mm）

Lifting height optional:16/18/20m (with supporting legs)

Self-propelled Scissor Lifting Platform/ Aerial Scissor lift table / Aerial work platform /scissor vertical platform person lift / Hydraulic electric scissor lift

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Categories:
Tags: , , , , , , , , , , , , , , , , ,
Contact us
Full Electric Pallet Jack
Stand Drive Electric Pallet Stacker 4.0~5.5m

Description

Self-Propelled Scissor Lifting Platform

Model NumberGTJZ16                                                 GTJZ18                                               GTJZ20
Max.Platform Height                                        mm15800                                                     18000                                                   20000
Max.Working Height                                        mm17800                                                      20000                                                  22000
Folding Platform Height                                  mm2260                                                        2350                                                    2440
support leg                                                              80*160
Lift Rated Capacity                                           kg320                                                          300                                                        300
Platform Extend Capacity                                 kg100
Platform Size                                                    mm3000*1150                                           3150*1500                                           3500*1800
Platform Extend Length                                   mm900
Max.Drive Speed(platform Stowed)               km/h                                                                 3.5
Max.Drive Speed(platform Elevated              km/h                                                                 0.8
Min.turning Radius                                          mm                                                                 3.16
Max.Climbing Capacity                                      %                                                                   20
Rising/Falling speed                                       sec                                                                 70/80
Wheel size （stuffed & no mark）                 mm                                                               381*127
Power Source                                                  v/kw                                                                48/2.2*2
Way of control                                             Electric-hydraulic proportion control
Battery                                                             v/Ah4*12/185                                                8*12/150                                               8*12/150
Charger                                                            v/A24/30                                                         24/30                                                    24/30
Driver                                                        Double front-wheel
Hydraulic drive                                                         Double rear-wheel
Overall Width                                                   mm1500                                                         1800                                                       1800
Overall Length                                                 mm3160                                                          3500                                                       3500
Overall Net Weight                                            kg 4200                                                         6200                                                       6800

Warranty:1year
Packaging Details:

FAQ

  1. Do you accept customized design?Do you offer OEM & ODM service?

Yes,of course!We have over 10 years’ experience in customized design product,expecially lift table.

  1. What information should I provide for a customized order?

The more information you provide, the accurate solution we can prepare for you.Such as: control by manual or electric, stationary or mobile, power source/voltage demand, load capacity, lifting height(min.height and max height), table size and other information required.

  1. What is your MOQ?

One unit.The more the better.The price is negotiable for large quantity.

  1. What is your payment term?

For stock items,T/T in advance.

For customize order,30% T/T in advance,balance before shipping.

  1. What is the delivery time?

For stock items,send out in 1-3 workdays after payment.

For customized order, we can deliver in 15-25 days. It’s based on what’s kinds of styles and the quantity.

  1. How long is the warranty time?

One year or 2000 hours,whatever come first.

  1. How can I get the after-sales service?

Usually on line and video if necessary.Lifetime technical support.

  1. How do you do to control quality?

We comply with IS09001 standards strictly and most of our products are CE approved.
