WHOLE-ELECTROMOTION SCISSOR-TYPE ALOFT LIFTING PLATFORM

Electric Scissor Lifting Platform

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Categories:
Tags: , , , , , , , , , , , , , ,
Contact us
Manual Forklift Stacker 400kg
Heavy Duty Double Scissor Lifting Table

Description

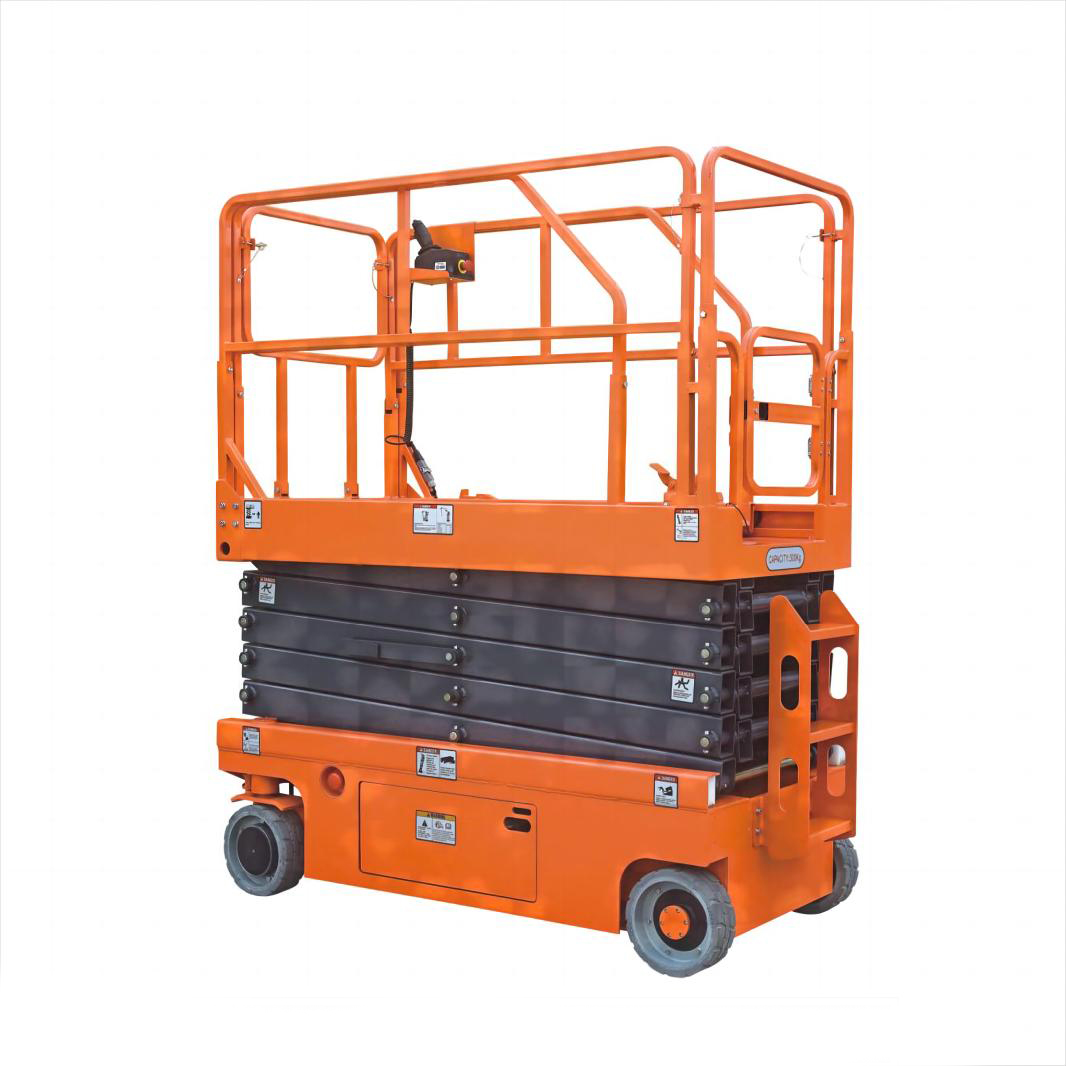

Electric Scissor Aloft Lifting Platform

Model NumberFSJY6                     FSJY8
Max.Platform Height                                        mm6000                         8000
Max.Machine Height                                        mm7100                         9100
Min.Platform Height                                         mm1080                        1200
Ground Clearance                                            mm20                               20
Lift Rated Capacity                                           kg300                           300
Platform Extend Capacity                                 kg100                           100
Platform Size                                                    mm           1880×900
Platform Extend Length                                   mm                900
Max.Drive Speed(platform Stowed)               km/h                 3~4
Max.Drive Speed(platform Elevated              km/h               0.6~1
Min.turning Radius                                          mm                2000
Max.Climbing Capacity                                      %              10~15
Driving Wheel Size                                          mm              305×100
Directional wheel size                                     mm               305×100
Driving Motor                                                  v/kw               2×24/0.5
Lifting Motor                                                    v/kw                 24/2.2
Battery                                                             v/Ah               2×12/150
Charger                                                            v/A                  24/25
Pothole Protection System          Mechanical control
Overall Length                                                 mm                  2050
Overall Width                                                   mm                    900
Overall Height(guardrail removed)                mm1735                        1860
Overall Net Weight                                            kg1500                        1700

Warranty:1year
Packaging Details:

FAQ

  1. Do you accept customized design?Do you offer OEM & ODM service?

Yes,of course!We have over 10 years’ experience in customized design product,expecially lift table.

  1. What information should I provide for a customized order?

The more information you provide, the accurate solution we can prepare for you.Such as: control by manual or electric, stationary or mobile, power source/voltage demand, load capacity, lifting height(min.height and max height), table size and other information required.

  1. What is your MOQ?

One unit.The more the better.The price is negotiable for large quantity.

  1. What is your payment term?

For stock items,T/T in advance.

For customize order,30% T/T in advance,balance before shipping.

  1. What is the delivery time?

For stock items,send out in 1-3 workdays after payment.

For customized order, we can deliver in 15-25 days. It’s based on what’s kinds of styles and the quantity.

  1. How long is the warranty time?

One year or 2000 hours,whatever come first.

  1. How can I get the after-sales service?

Usually on line and video if necessary.Lifetime technical support.

  1. How do you do to control quality?

We comply with IS09001 standards strictly and most of our products are CE approved.
